Ultimate performance
1.2kW - 6400 RPM - 5.5 nm
320x180x240mm XYZ
•••
1.6hp - 6400 RPM - 4 ft-lbs
12.6x7.08x9.44" XYZ
Machines from the future
Unlike anything ever seen before, the Samurai 120 with Dual ATC is at the forefront of desktop CNC machines.
Next level design optimization
Samurai Machine tools designs from fundamentals. Every aspect has been refined down to the fraction of a mm.

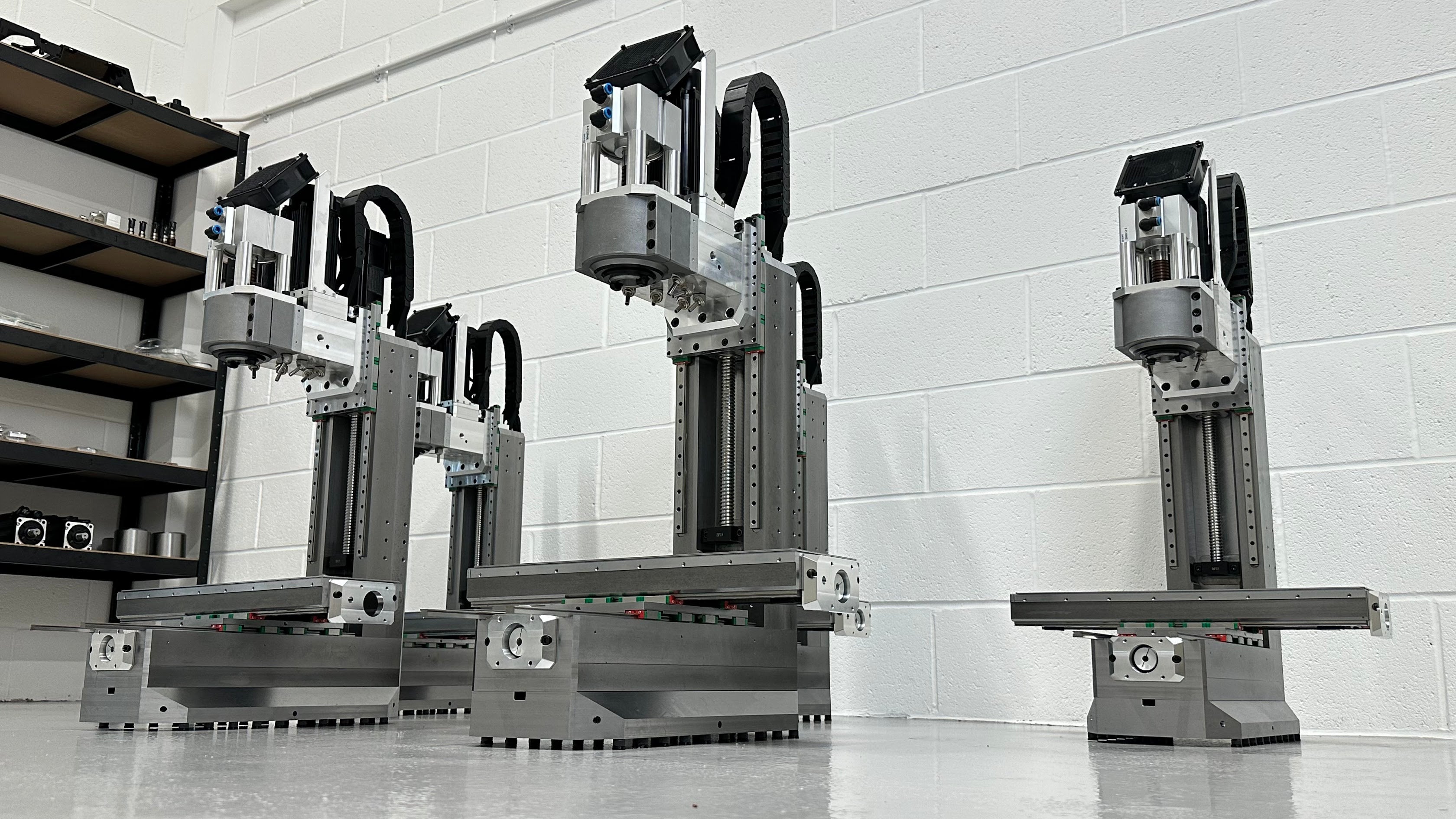

The Ultimate prototyping machine

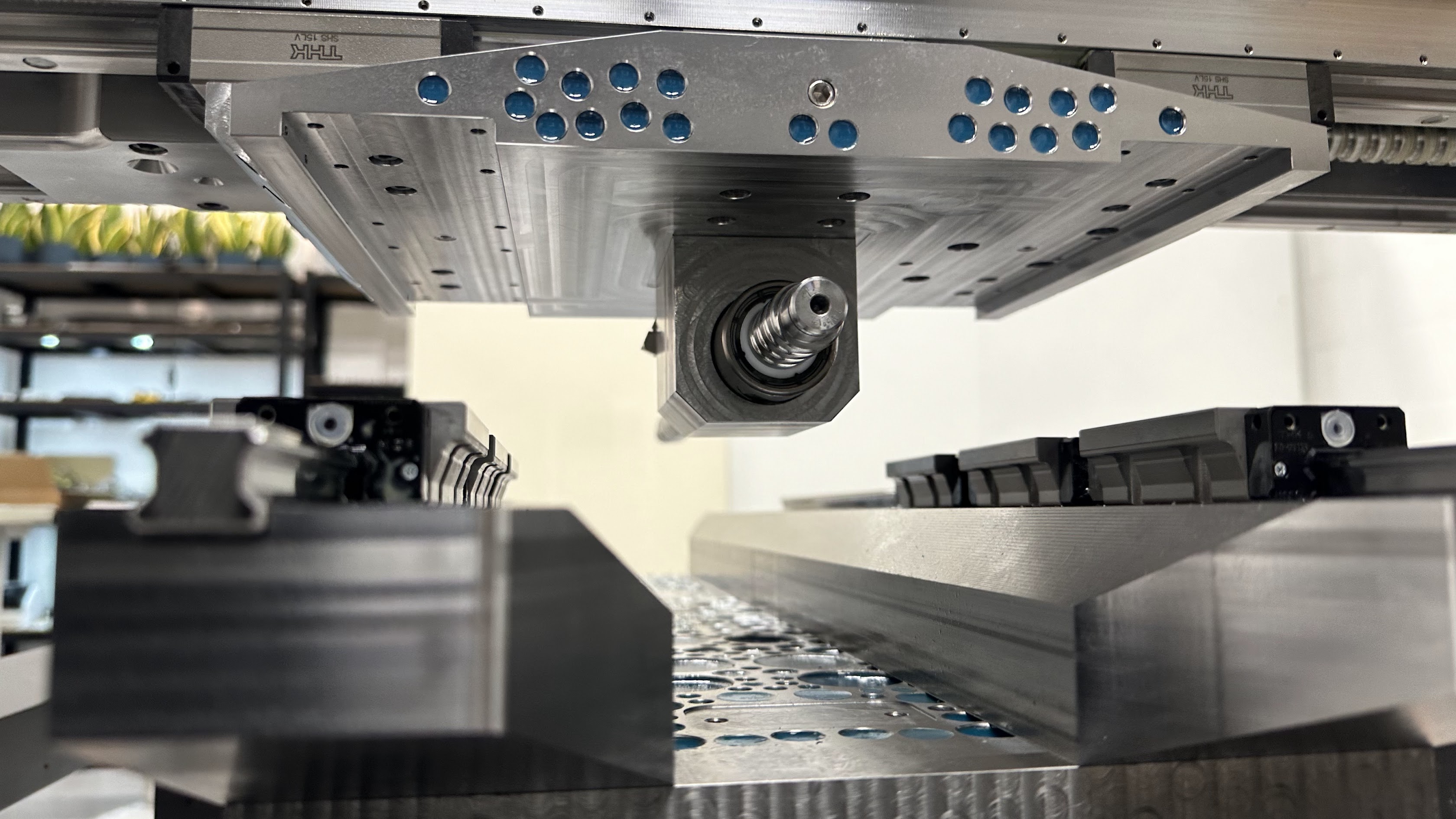

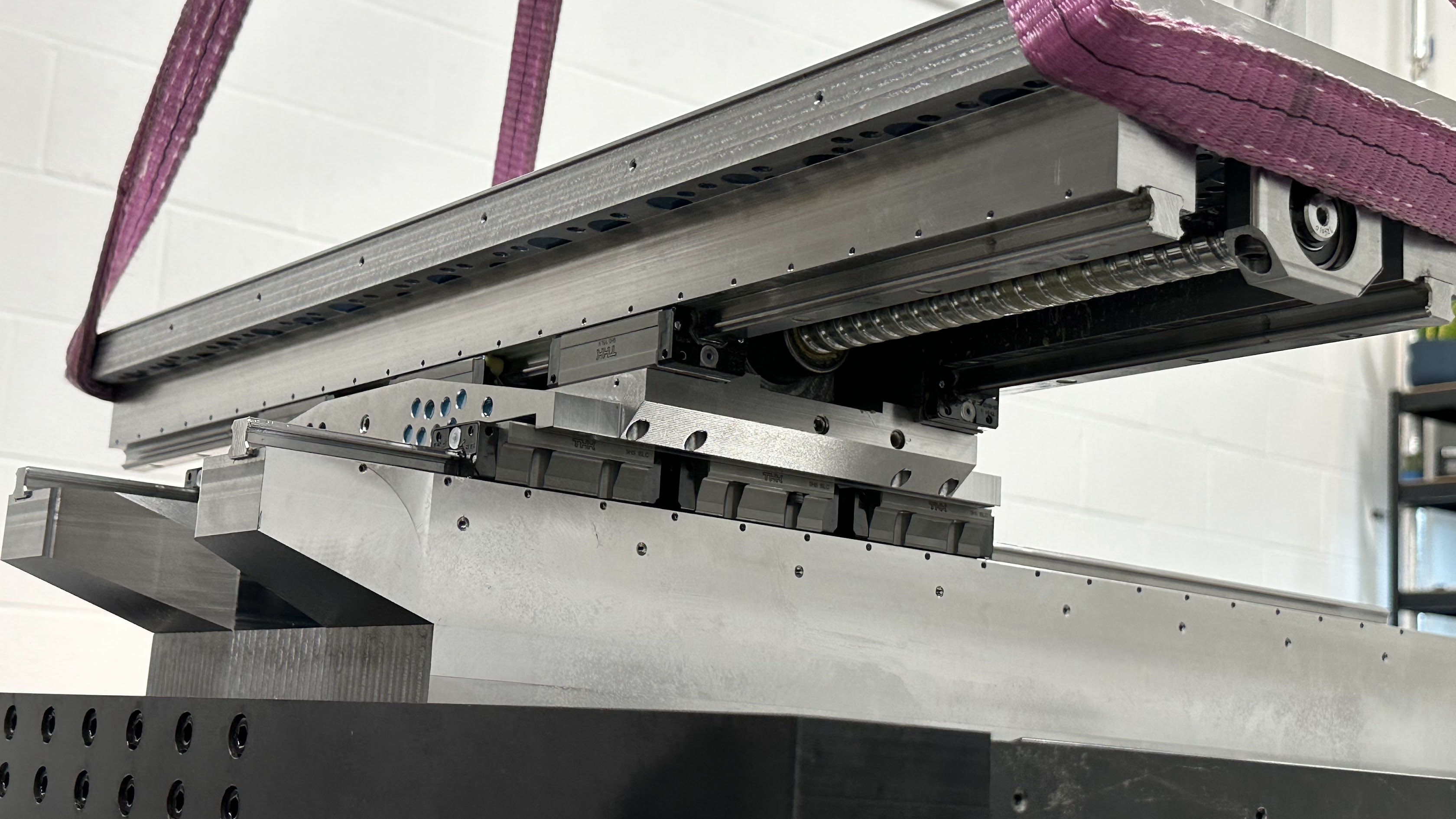

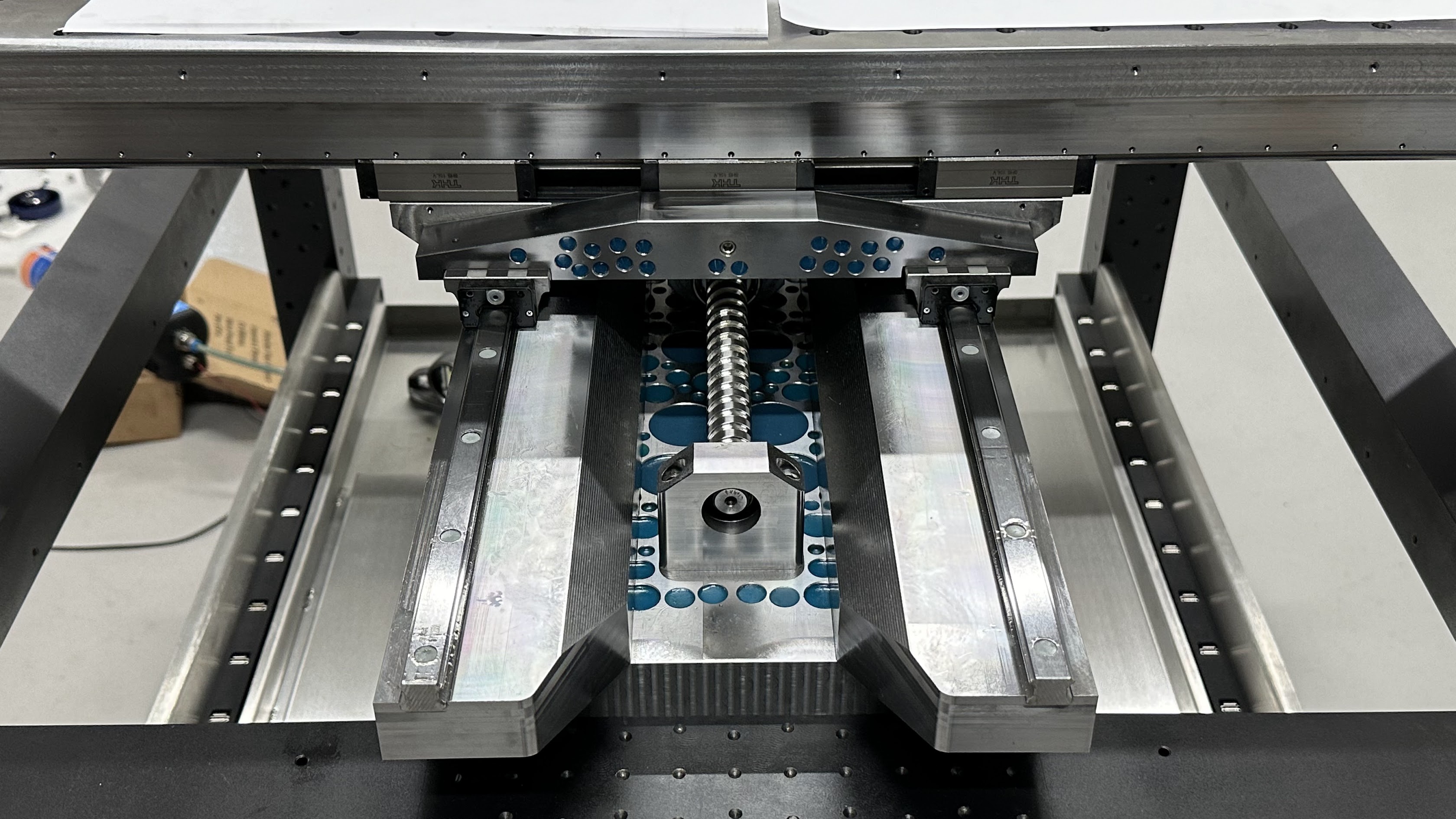

Solid Steel frame
Samurai Machine tools have designed the first cnc machine with a solid steel frame. The results being much higher rigidity and precision compared to a typical cast iron frame.
Shielded way covers
The Y axis features full way cover protection as standard to increase durability of the accordion covers - and to reduce manual cleaning cycles. X & Z coolant proof protection is also available.

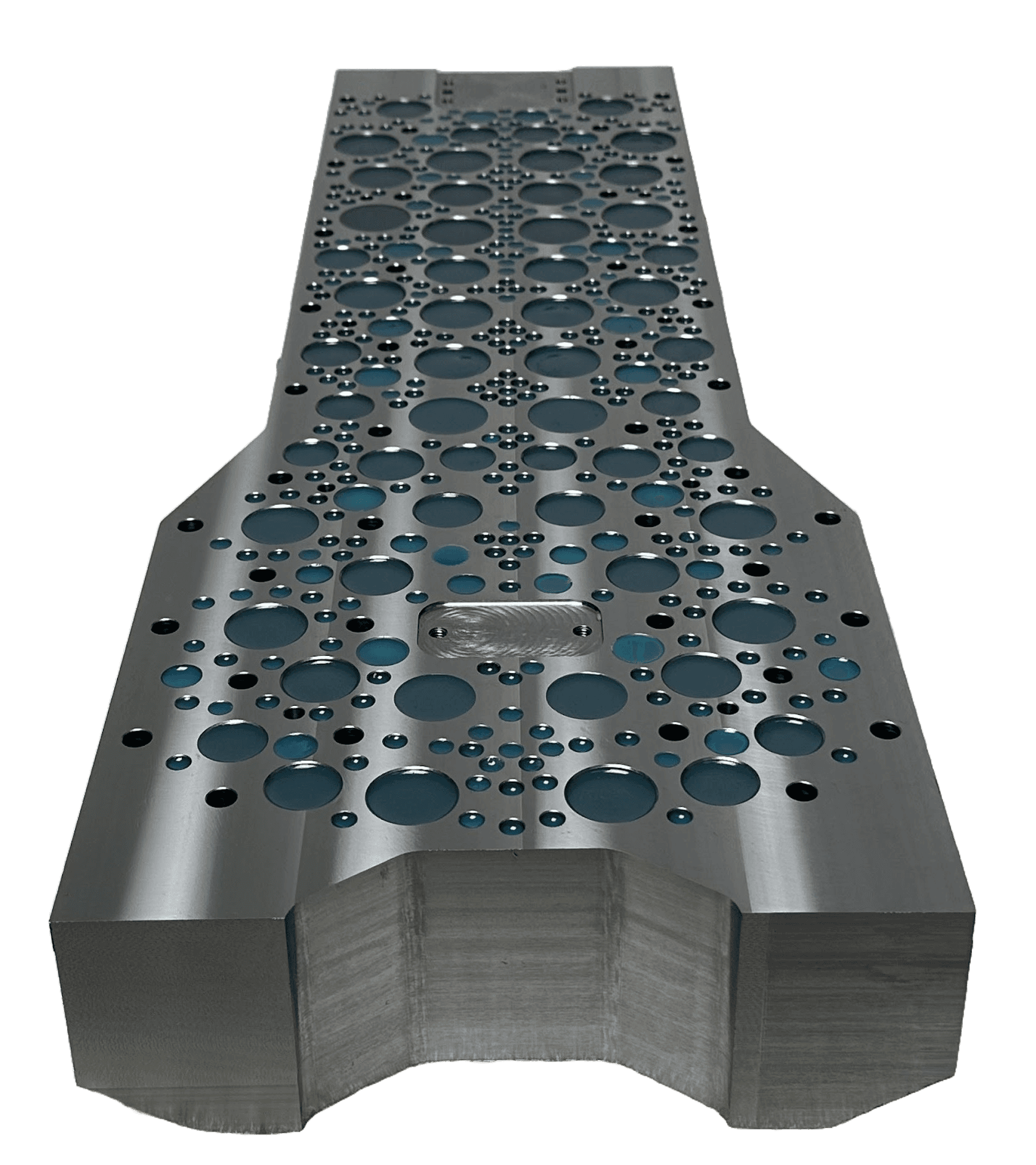

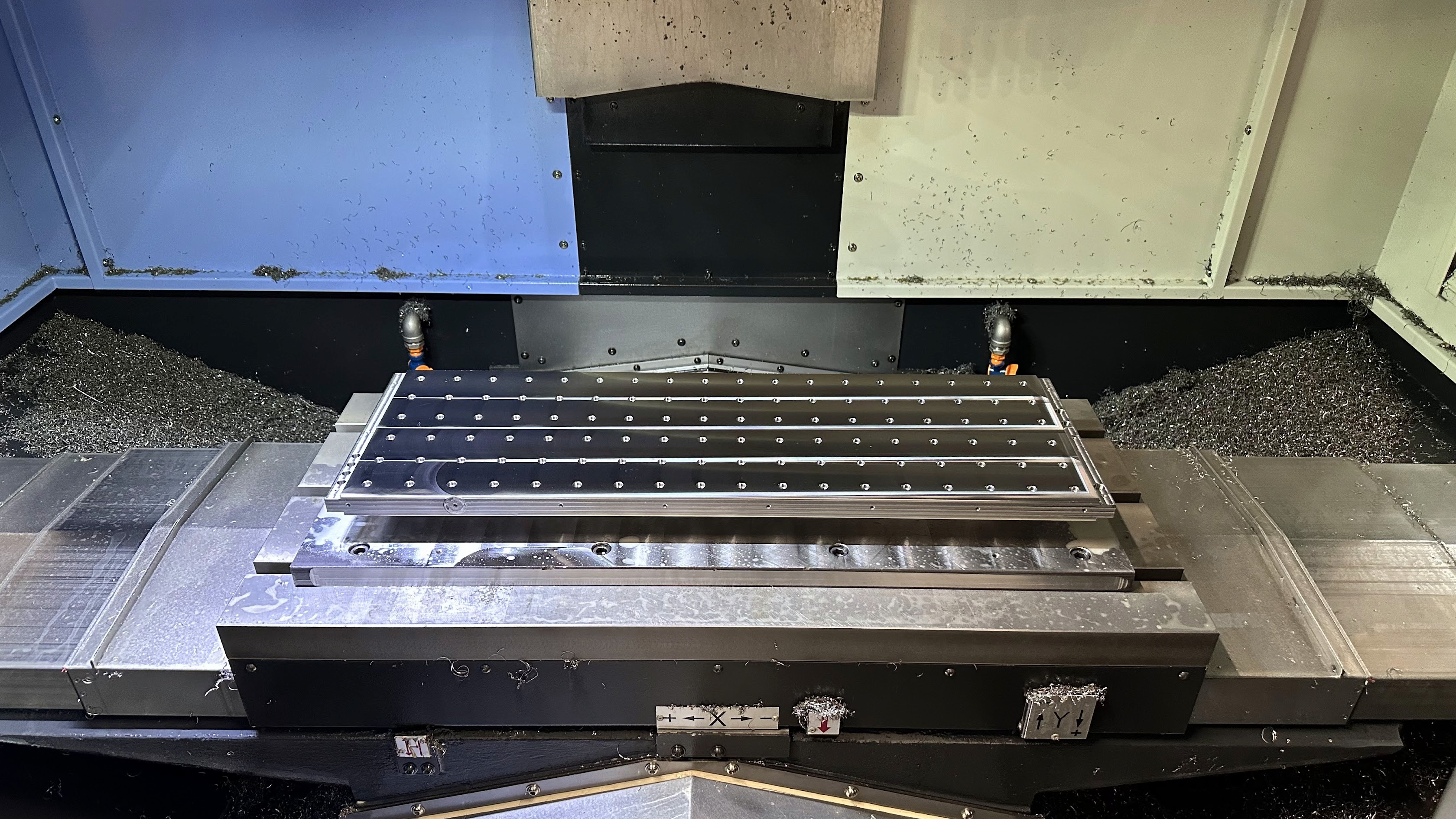

Base plate
Add extra mass, strength and stability to the machine with the optional 50mm (2") thick base plate.

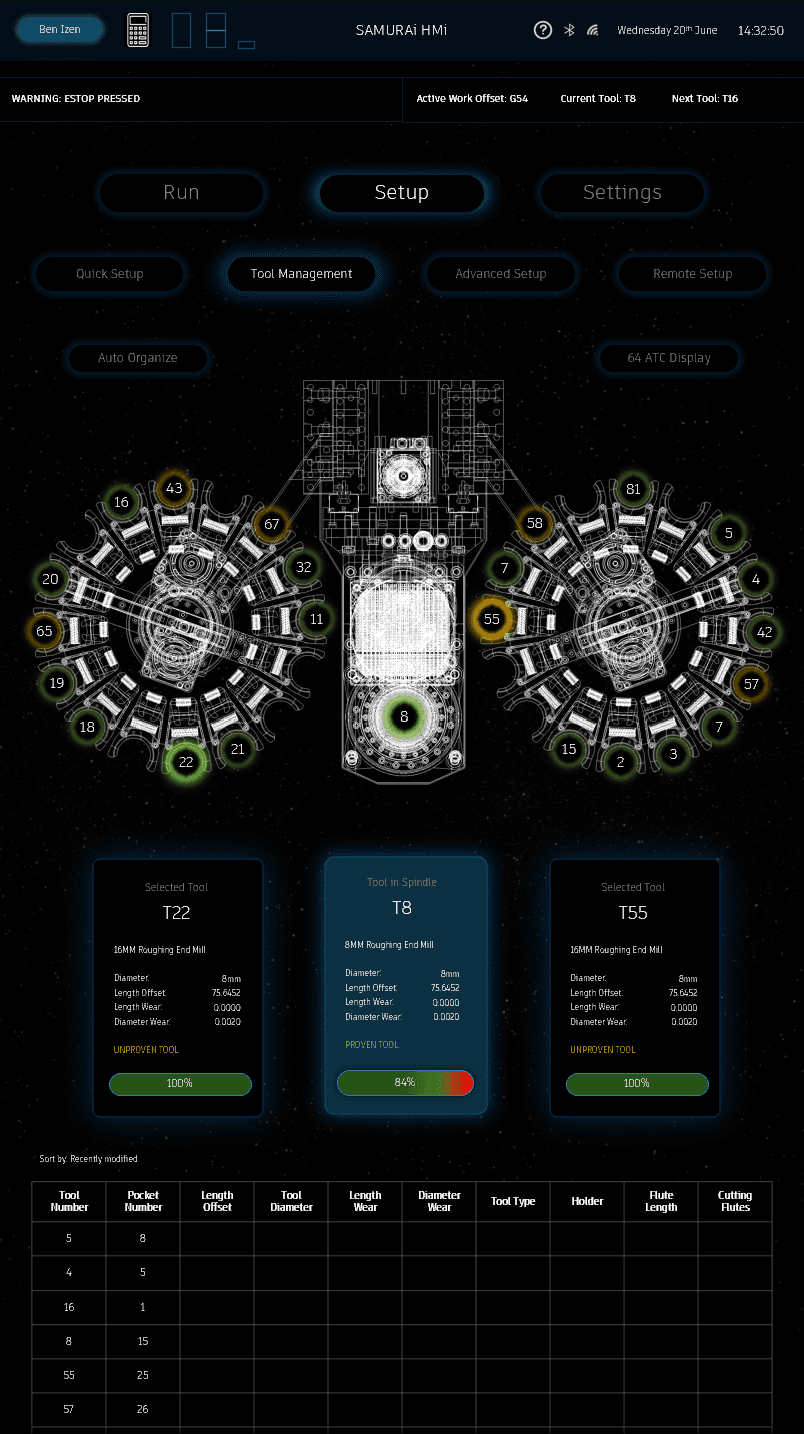

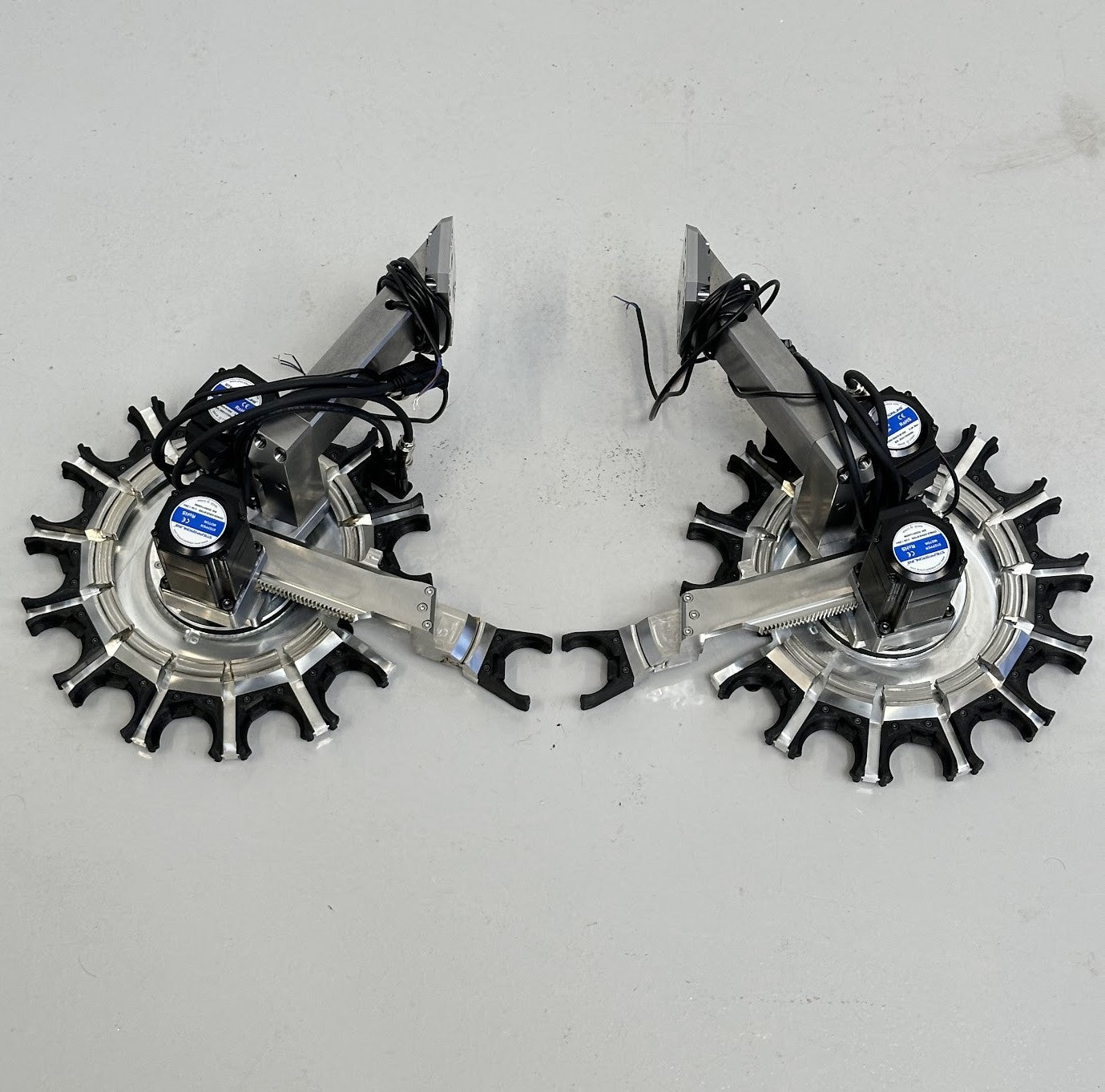

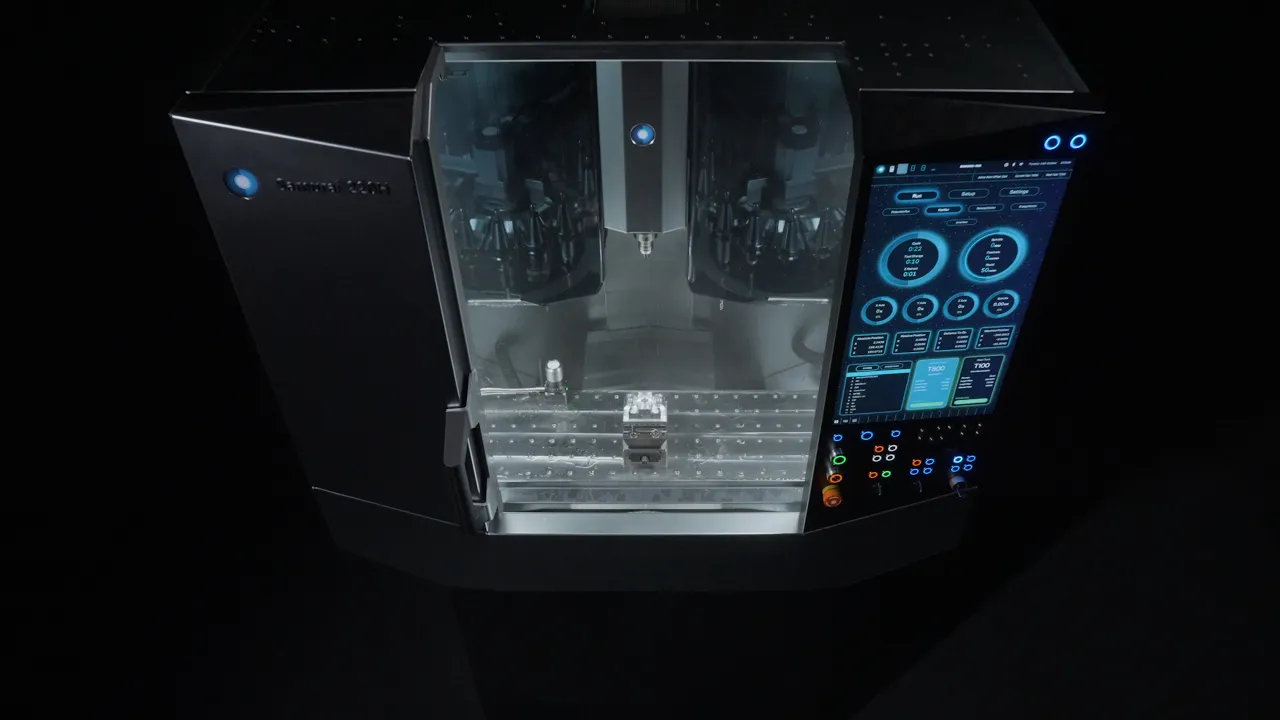

Dual ATC
Samurai Machine tools have designed the first cnc machine with the capability of a second tool changer.
Single ATC
If you don't need 28 tools you can save money with the Single ATC.
No ATC
The ATC is a luxury not a necessity. With the pneumatic drawbar fitted as standard you can manually change tools in under 2 seconds.
Samurai 120 Specs
Power
*1.2kW - 1.6hp
Max RPM
6400
Taper
BT30
XYZ
320x180x240mm - 12.6x7.08x9.44"
Spindle nose - table
350mm - 13.77"
Rapid
15m/min - 590 ipm
Max precision
0.005mm - 0.00019"
*1.2kW represents 200% spindle load
Samurai 120H Brochure
Full overview of technical specifications, options, and machine dimensions.
- Basic Structure
- Axis System
- Spindle
- Table
- Machining performance
- Samurai Type 1 ATC
- Standard / Optional Specifications
- NK530M
- Mach 4
- Dimensions
- Machine Specifications
Technical document
Detailed specifications of the Samurai 120.
- Electronics options and info
- Correct use of product
- Detailed specification
- Machine alignment report
- Axis drive system
- Upgrades
- Manufacturing process

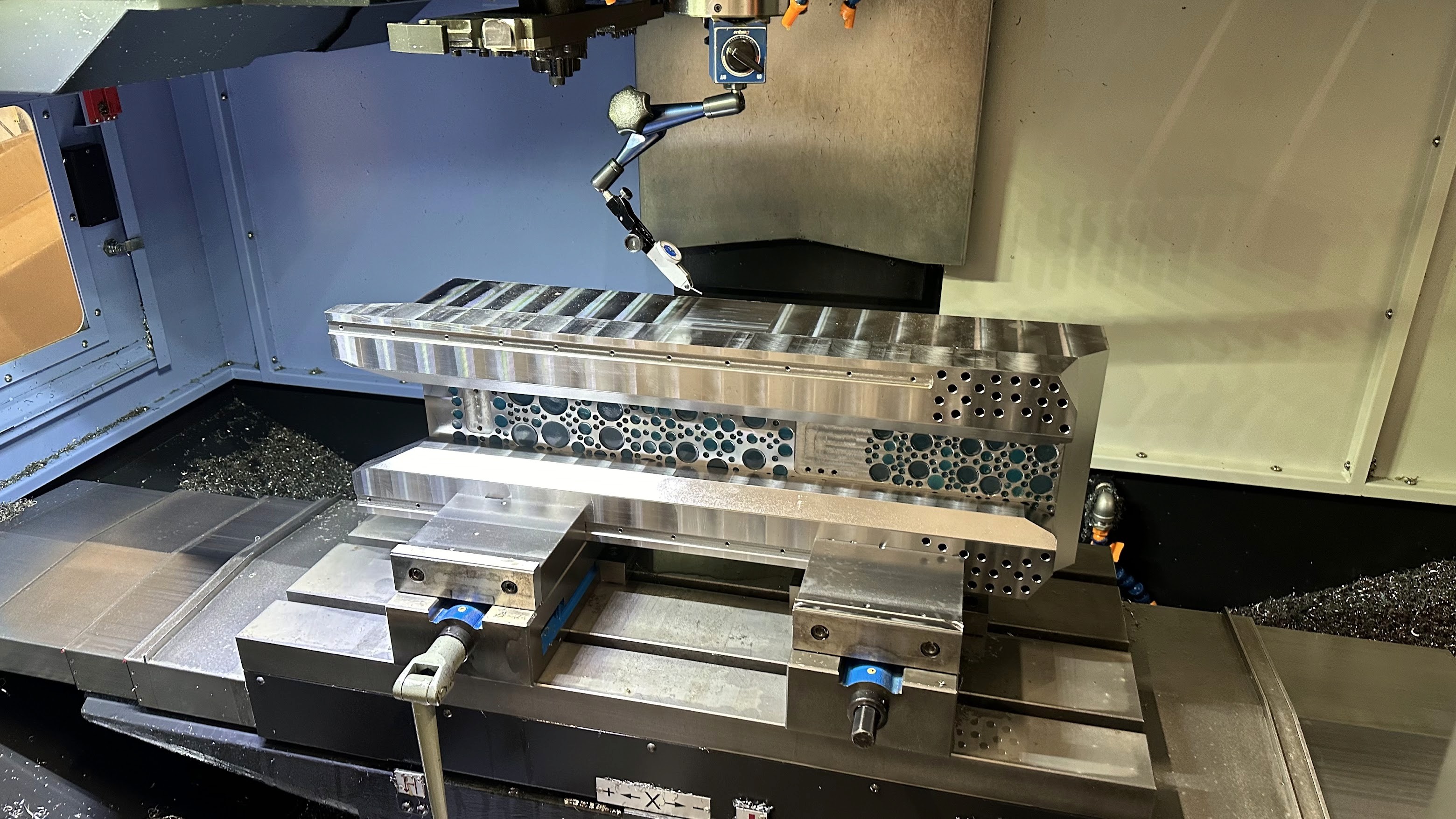

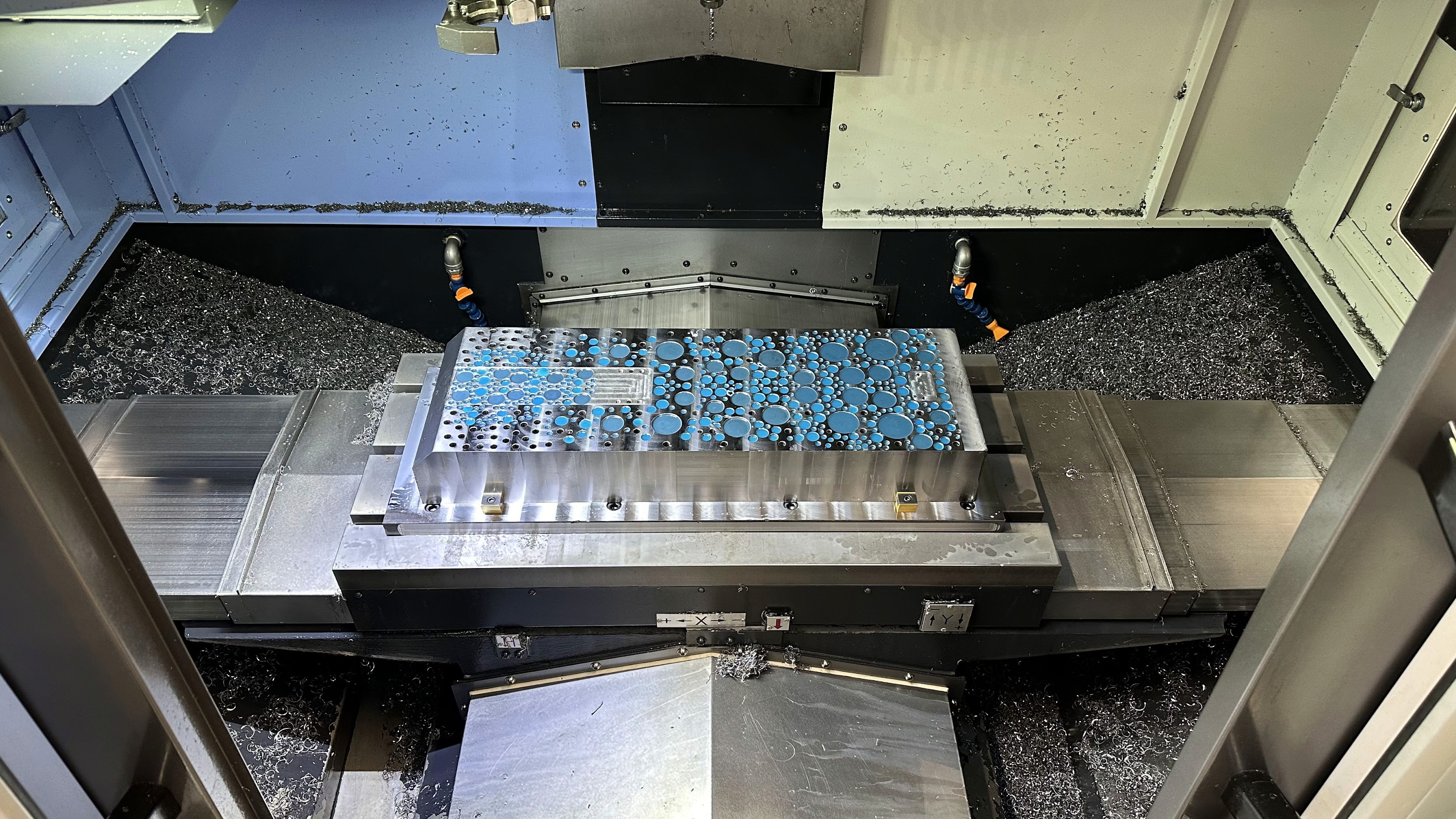

Samurai 120 Parts Gallery
Collection of parts manufactured on the Samurai 120 Prototype during its 3 year testing period.
